Back Rear Main camera flex for iPhone 7 Plus

Description

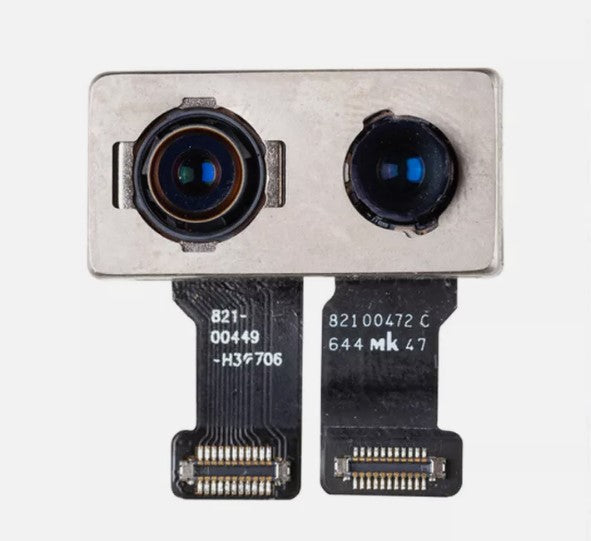

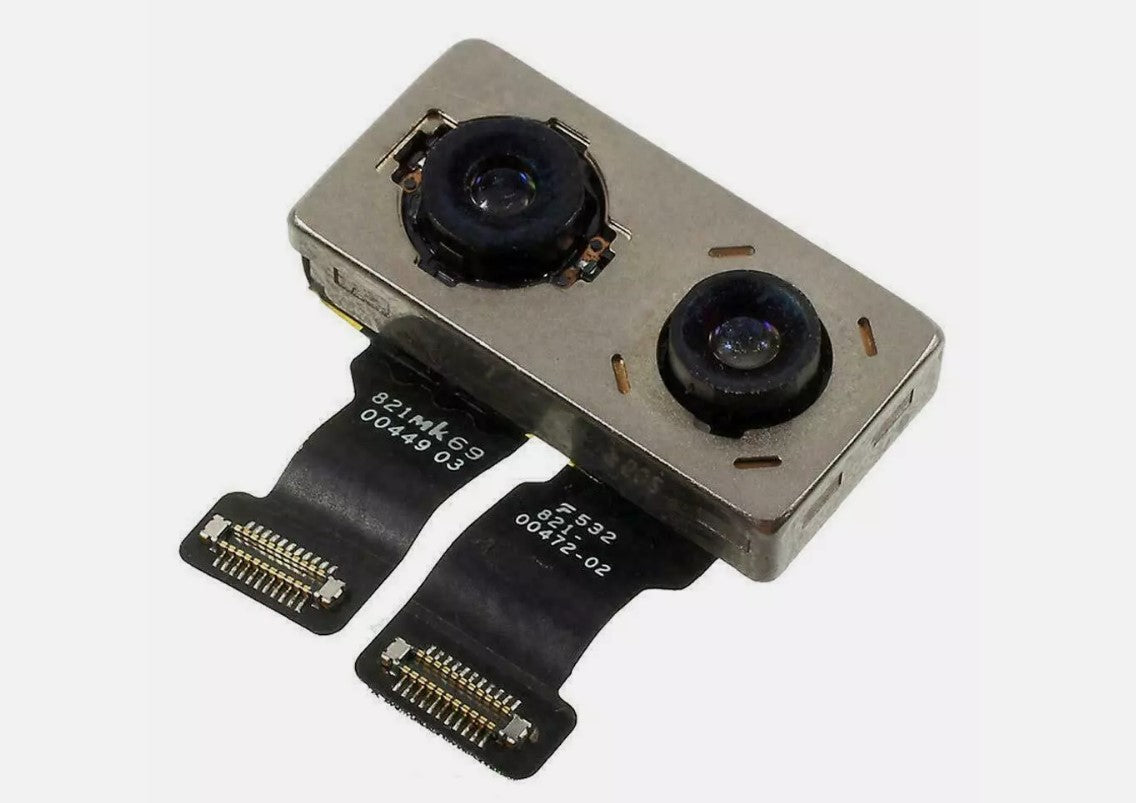

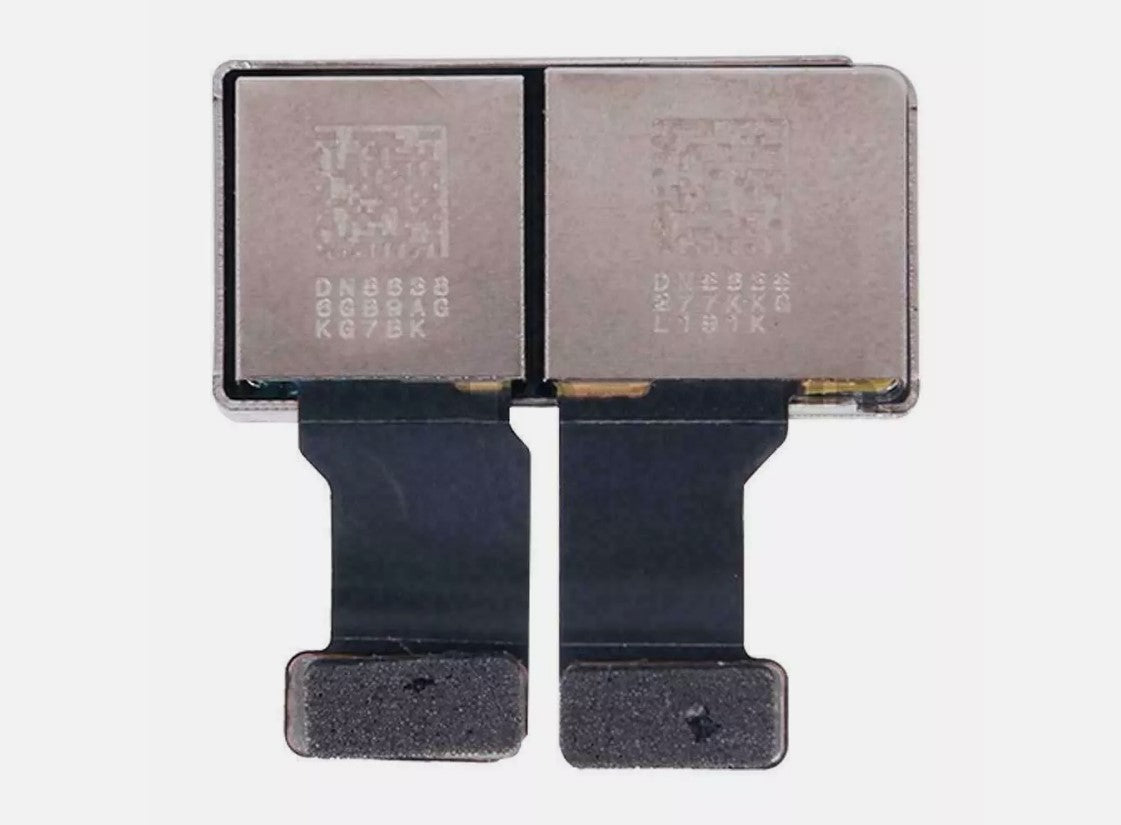

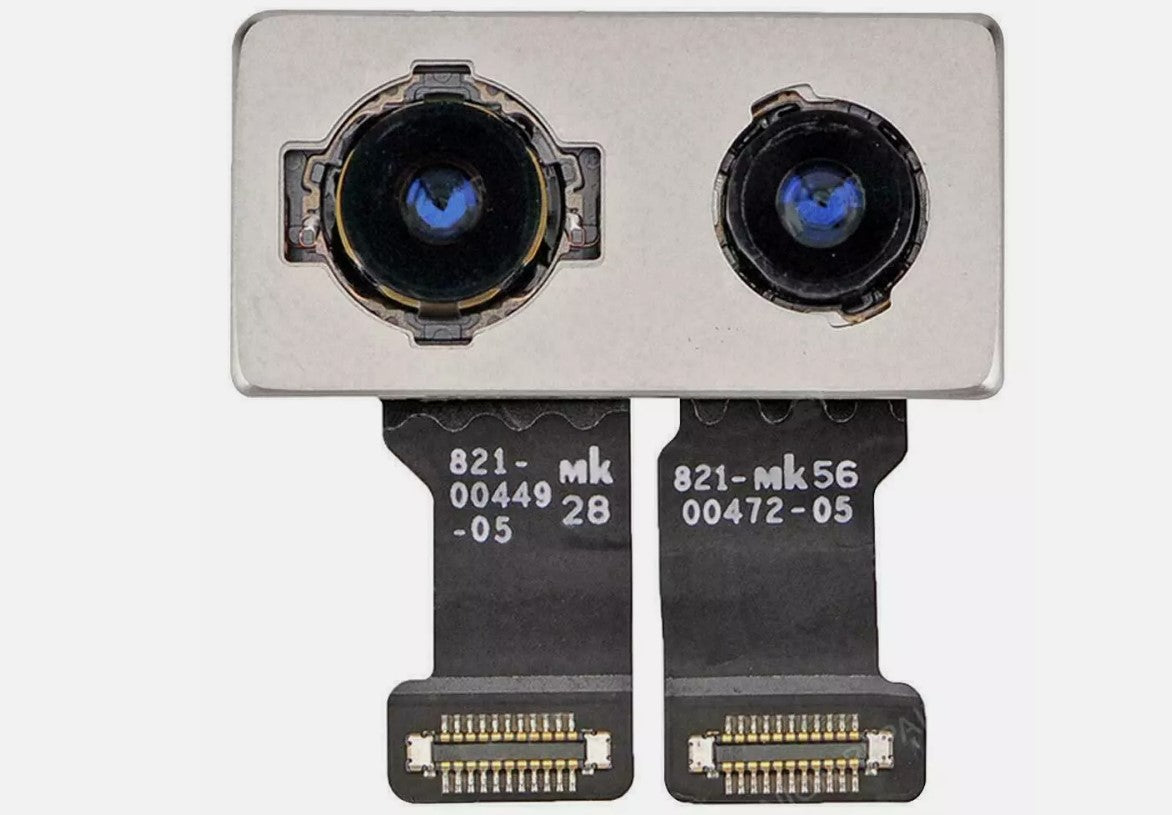

The Back Rear Main Camera Flex for iPhone 7 Plus is a replacement part designed to restore the functionality of the main rear camera on the device. If your iPhone 7 Plus experiences issues such as the rear camera not focusing, not working at all, or showing distorted images, this flex cable could be the solution. The cable connects the camera module to the logic board and allows for data transmission, enabling the camera to function properly.

Specification

1. Compatibility: Device: iPhone 7 Plus and Model Numbers: A1661, A1784, A1785
2. Material:
• Flexible PCB (Printed Circuit Board) with high-quality connectors.
• Durable and resilient for reliable performance.
3. Components:
• Rear main camera flex cable.
• Camera connector.
4. Functionality:
• Transmits data between the camera module and the logic board.
• Ensures proper camera functionality, including autofocus and image capture.
5. Dimensions: Custom cut to fit perfectly within the iPhone 7 Plus.

Key Features

1. Restores Camera Functionality: Replaces damaged or defective camera flex cables, resolving issues such as blurry images, failure to focus, or complete camera malfunction.
2. High-Quality Design: Made with durable materials for long-lasting use, ensuring optimal performance of the rear camera.
3. Seamless Installation: Designed to fit the iPhone 7 Plus exactly, allowing for easy and secure installation without the need for additional modifications.
4. Precise Data Transmission: Ensures stable and reliable communication between the camera and logic board for clear and high-quality images.
5. Cost-Effective Solution: Replaces only the damaged flex cable, avoiding the need to replace the entire camera module.

Applications

• Replaces a damaged or malfunctioning rear camera flex cable.
• Fixes issues with blurry, distorted, or non-functional images.
• Resolves problems with camera autofocus or failure to launch the camera app.

Installation Notes

1. Installation Process:
• Power off the device and disconnect the battery.
• Carefully remove the damaged rear camera flex cable using tweezers or a spudger.
• Clean the area around the flex cable and camera module to ensure proper adhesion.
• Align and install the new rear camera flex cable, ensuring a snug fit for all connectors.
2. Precautions:
• Handle the flex cable delicately to avoid damaging the small connectors.
• Make sure to test the camera before fully sealing the device.
• Reassemble the phone carefully to avoid misaligning or damaging the flex cable.
